Toilet Seat Swing Life Test Machine with Adjustable Parameters

Name: Toilet Seat Swing Life Test Machine with Adjustable Parameters
Brand: Haida
Price: 1 USD

Quality Toilet Seat Swing Life Test Machine with Adjustable Parameters wholesale

Brand Name : Haida

Model Number : 5058-HD

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow

Supply Ability : 30 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

heat source : Ceramic heater

touch screen : LCD

Display : LCD screen

Testing Time : Adjustable

Reply For Probme : Within 24 hours

Test Parameters : Temperature, pressure, weight, etc.

Test Results : Quantitative and qualitative data

Test Methods : Impact, abrasion, chemical resistance, etc.

Scale Display : 1 degree

Usage : Testing cookware for durability and safety

Steel Impact Hammer : Having a mass of 1KG ±50g

Scale Resolution : 1°

Temperature Range : 0-300°C

Customized : Welcome

Test Cyclic : 15000 cyclic (adjustable)

Factory : Yes

Accuracy : ±1°C

Power Supply : 220V

Test Stoke : 20 to 60 mm (adjustable)

Gross Weight : 210KG

Application : Laboratory, Kitchen

Transportation : By Sea

Weight : 5kg

Certifications : CE, ISO

Contact Now

APPLICATIONS & TEST PURPOSE:

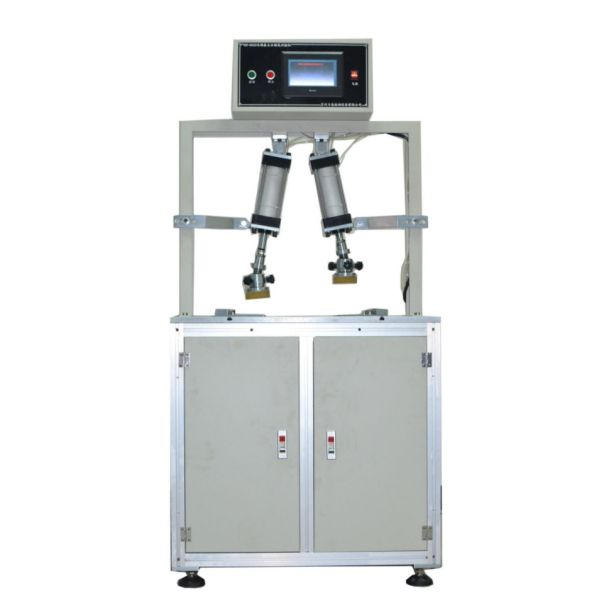

This equipment is developed for the swing life test of toilet seat rings and covers. During the test, the sample was installed on the test platform. Two cylinder mechanical hands on the left and right alternately pushed and pressed the seat ring and the cover, with a pushing time of 1 second and an interval of 0.5 seconds, to verify the force conditions of the sample during normal use.

TEST STANDARD: JCT 764-2008 Appendix A

STANDARD FAETURES:

Function	Swing life test of toilet seat ring and cover
Swing thrust	0-2000N(adjustable)
Force application method	Pressure is applied by the cylinder, and the force value is adjusted by regulating the air pressure
Cylinder specifications:	Cylinder inner diameter φ50.8mm, stroke 127mm
Pressure plate specification	Diameter φ76.2mm, thickness 19mm
Force application time	0-99.9 seconds (adjustable)
Force measurement method	Before the test, the air pressure at which the force value is set is calibrated through the force sensor. During the test, the test air pressure is maintained to accurately measure the force value
Control mode	PLC+ human-machine interface
Working cycles	0- 99,999 times can be set;
Power supply	220± 10% V /50Hz;
Dimensions	Length 1000mm x Width 800mm x Height 1500mm
Features	Formed aluminum frame,Formed aluminum frame
